METRIC

DIN TUBE

9624 SERIES

FEMALE JIC X MALE DIN

Part # 9624-08-S12-20

HEAVY DUTY

Shape: Straight

Specifications

Side 1
Type Gender Size
JIC Female 1/2"
Thread Relevant Standard(s)
3/4 - 16 UNF SAE J514 / ISO 8434-2
Side 2
Type Gender Size
DIN TUBE Male S12
Thread Relevant Standard(s)
M20 X 1.5 ISO 8434-1 / DIN 2353

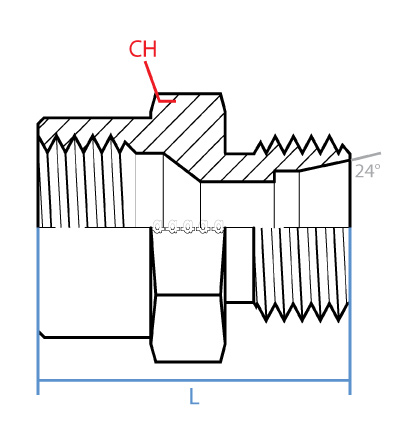

Dimensions

L (Length)
30mm
CH (Width)
27mm

Weight

lbs.
0.14

Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

9624-08-S12-20
