How to ID 24° Tube Fittings

24° tube fittings, or ‘Bite-Type,’ are the most popular fitting globally and employ the most advanced tube fitting system in the world.  This system is capable of withstanding high pressures and extreme vibration, thanks to the cutting ring design.  The cutting ring is a ferrule that incorporates sharp cutting edges.  When a nut is torqued onto the fitting, the base of the nut comes into contact with the cutting ring, wedging it into the 24° tapered throat of the fitting thereby cutting into and gripping the tube.  Identify with caution, DIN fittings employ Metric threads and closely resemble other Metric fittings.

DIN fittings, 24° tube fittings, cutting ring, Metric threads, Metric fittings

24° Throat Angle

The fitting itself incorporates a 24° tapered throat adjacent to the tube receptacle (where the tube ‘bottoms out’), which guides the wedging of the cutting ring while the nut provides torque.  Proper attention must be given to the relevant installation instructions in order to achieve a properly sealed assembly.  Refer to the Assembly Instructions for details.

Styles and Variations

There are numerous variations of cutting rings available, as well as mating styles incorporating swivel nuts, tube nipples and/or hose ends that replace the cutting ring in order to provide a seal.  The latter versions do not require assembly by means of torquing the tube nut as the flare is already incorporated into the tube or hose.  However, the 24° fitting and nut remain consistent throughout the varying styles.

24° tube fittings variations, swivel nuts, tube nipples, hose ends, cutting ring, seal, flare, fittings

Pressure Classes

This tube fitting system is commonly referred to as Bite-Type, DIN 2353, or ISO 8434-1.  The 24° fitting, nut, and cutting ring comes in three different classes: LL for low pressure applications, L for medium pressure applications, and S for high pressure applications.  For working pressures and compatible components, please refer to the ‘Component Compatibility Chart’ below:

Component Compatibility Chart

PRESSURE
SERIES
TUBE 0.0 METRIC THREAD
CALLOUT
WORKING
PRESSURE
(BAR)*
TUBE NUT
PART #
CUTTING RING
PART #
TUBE PLUG
PART #
TUBE CAP
PART #
LL 4 mm 8 mm X 1.0 100 5201LL-04 5202LL-04
6 mm 10 mm X 1.0 100 5201LL-06 5202LL-06
8 mm 12 mm X 1.0 100 5201LL-08 5202LL-08
10 mm 14 mm X 1.0 100 5201LL-10 5202LL-10
12 mm 16 mm X 1.0 100 5201LL-12 5202LL-12
L 6 mm 12 mm x 1.5 315 5201L-06 5202-06 5203L-06 5204L-06
8 mm 14 mm x 1.5 315 5201L-08 5202-08 5203L-08 5204L-08
10 mm 16 mm x 1.5 315 5201L-10 5202-10 5203L-10 5204L-10
12 mm 18 mm x 1.5 315 5201L-12 5202-12 5203L-12 5204L-12
15 mm 22 mm x 1.5 315 5201L-15 5202-15 5203L-15 5204L-15
18 mm 26 mm x 1.5 315 5201L-18 5202-18 5203L-18 5204L-18
22 mm 30 mm x 2.0 160 5201L-22 5202-22 5203L-22 5204L-22
28 mm 36 mm x 2.0 160 5201L-28 5202-28 5203L-28 5204L-28
35 mm 45 mm x 2.0 160 5201L-35 5202-35 5203L-35 5204L-35
42 mm 52 mm x 2.0 160 5201L-42 5202-42 5203L-42 5204L-42
S 6 mm 14 mm X 1.5 630 5201S-06 5202S-06 5203S-06 5204S-06
8 mm 16 mm X 1.5 630 5201S-08 5202S-08 5203S-08 5204S-08
10 mm 18 mm X 1.5 630 5201S-10 5202S-10 5203S-10 5204S-10
12 mm 20 mm X 1.5 630 5201S-12 5202S-12 5203S-12 5204S-12
14 mm 22 mm X 1.5 630 5201S-14 5202S-14 5203S-14 5204S-14
16 mm 24 mm X 1.5 400 5201S-16 5202S-16 5203S-16 5204S-16
20 mm 30 mm X 2.0 400 5201S-20 5202S-20 5203S-20 5204S-20
25 mm 36 mm X 2.0 400 5201S-25 5202S-25 5203S-25 5204S-25
30 mm 42 mm X 2.0 400 5201S-30 5202S-30 5203S-30 5204S-30
38 mm 52 mm X 2.0 315 5201S-38 5202S-38 5203S-38 5204S-38

*1 BAR – 14.7 psi

How to identify 24° Metric Tube Fittings

The first step is to look for a size and series listed on the nut itself.  It should list something like LL-08, 18-L, S20 or similar.  Once identified, refer to the ‘Component Compatibility Chart’ above for information on relevant components such as cutting rings, plugs, and caps.  Not all manufacturers list this information on the nut, so further steps might be required.

Determining Size & Series Manually

tube fitting size

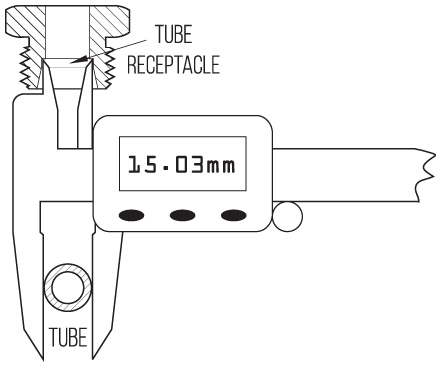

If no sizing information is available on the nut, the next step is to take a caliper reading of the outer diameter (O.D) of the tube or the inner diameter (I.D) of the tube receptacle inside the fitting.  Be sure to set your calipers to millimeters (mm) as this is the unit of measurement all Metric tube fittings and the subsequent dash size system is based on.  Note this measurement for later use.

sizing tube fittings, calipers, tube fitting measurements

The next step is to identify the thread size and pitch.  To identify thread size on a metric thread, simply take a caliper reading of the outer diameter (O.D) of the threads.  With metric threads, the O.D reading directly translates to thread size (i.e. an outer diameter reading of 22.05mm equates to a 22mm thread).  To identify the thread pitch, there are two options: a) use a caliper to measure the distance between thread crests (in mm), or b) use a thread pitch gauge, which is recommended in order to avoid false identification.  Thread pitches in the 24° DIN tube fitting class are 1.0mm, 1.5mm, or 2.0mm. The thread size and pitch are then combined to form the ‘thread callout’, which could be displayed as M22x1.5 or 22mm x 1.5, etc.

thread size, metric thread, caliper reading, diameter, thread pitch, DIN tube fitting, thread callout

Fitting & Component Compatibility

Lastly, compare the readings with the ‘Component Compatibility Chart’ in order to verify the size and series.  For example, the thread O.D is 22mm, the thread pitch is 1.5mm, while the tube size measured is 15mm.  Looking at the chart, a 15mm tube size with corresponding thread callout of M22x1.5 would indicate this assembly belongs to the L series for medium pressure, or more specifically as L15.  From this chart one will find part numbers for compatible components such as tube nuts, cutting rings, as well as tube plugs and caps.  Be sure to verify tube size as some thread sizes overlap between the pressure series i.e. an M14x1.5 thread could belong to the L or S series.

Thread Gauge Kit NEW!

Adaptall provides a user friendly tool to aid in the identification process called the ‘International Fitting Identification Kit’ (part # TGK-01).  It is a durable low cost tool for use in the field in order to identify Metric thread size and pitch, as well as verify 24° chamfer/throat angle.  There is also a British fitting identification tool that comes in this two piece kit, made in house and unique to Adaptall.  The kit is also a great counter sales item, ask about our custom branding options today.

thread gauge kit, fitting identification, identify Metric thread size, chamfer angle, throat angle, British fitting identification



How to Assemble 24° DIN Tube Fittings

  1. The first step in assembly is to cut the tube to length, then de-burr and clean.  Cut tubing with appropriate saw only.
  2. Next, pre-set the cutting ring by initiating the bite into the tube.  There are two ways to complete the pre-set: either a) manually with a fitting or hardened pre-assembly fitting body, or b) with a hydraulic pre-set machine.  Hydraulic pre-setting is recommended for assemblies with tube size greater than 18mm.
  3. Perform pre-set inspection to verify proper installation of cutting ring.
  4. Install the assembly.

Manual Pre-set Method

To manually pre-set the cutting ring you will need either the fitting or a hardened pre-assembly fitting body.  Hardened pre-assembly bodies are recommended for higher volume jobs, or when using Stainless Steel tube or standpipe fittings.  Ask Adaptall for details.

  1. Lubricate threads of fitting and nut, 24° throat, and cutting ring.

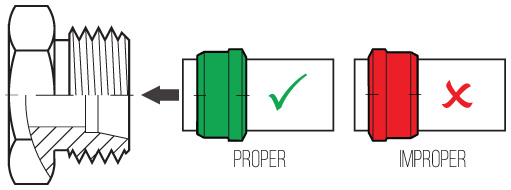

  2. Place nut then cutting ring over tube, ensuring proper orientation.

    cutting ring over tube, fittin manual pre-set, fitting of nut, pre-assembly bodies
  3. Thread nut onto fitting until finger tight.  Press tube firmly into the tube receptacle of the fitting while doing so.

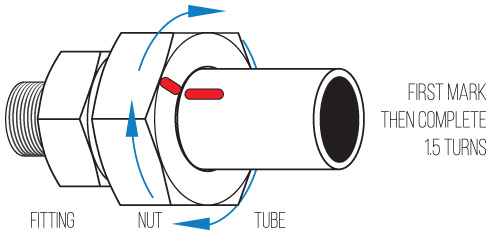

  4. Mark nut and tube position for reference with soap stone or marking pencil.
  5. Tighten nut so that it completes 1.5 turns (use markings as reference), while at the same time ensuring the tube is stationary and pressed firmly into the tube receptacle.  Sudden resistance to torquing is a sign the cutting ring is in a desired position.  Be sure to secure fitting with wrench while tightening the nut.

    secure fitting, torquing, cuttin ring, tube receptacle, tighten nut

Hydraulic Pre-set Method

There are various hydraulic pre-set machines available with specific instructions for each.  Please refer to your user’s manual for operating instructions.

Pre-set Inspection

Remove the nut from fitting and pull back in order to inspect the cutting ring.  The cutting ring should leave no visible gap between the first cutting surface and the tube, and the tube should have a visible bite edge in front of the cutting ring (looks like slightly raised material).  If not, tighten in small increments (checking the result after each increment) to verify cutting ring is properly gripping the tube.  It is possible for the ring to rotate around the tube, however this does not indicate an improper installation as long as all other factors are correct.

inspect cutting ring, tube gripping tub, proper installation

Final Installation

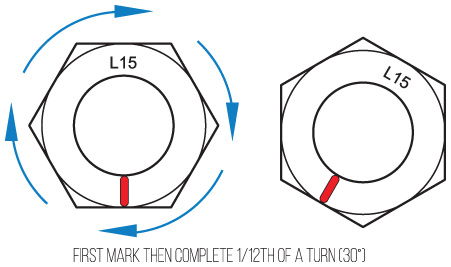

Take the pre-set assembly and insert tube into the fitting’s tube receptacle firmly, then tighten nut with light wrenching until resistance felt.  Once this has been achieved, tighten the nut another 30° or 1/12th of a turn.  This is the equivalent of turning the nut from a state where the hex is flat relative to a fixed point (i.e. a table) to where the sharp edge of the hex is now facing that position.  Be sure to use a second wrench to hold the fitting in place while torquing the nut.

insert tube into fitting, tighten nut, light wrenching, torquing nut



How to order 24° DIN Tube Fittings from Adaptall

To order 24° DIN tube fittings from Adaptall it is important to understand the part number system.  This system is typical of most manufacturers:

  1. The first four numbers indicates the part series i.e. 5000 is a male DIN union.
  2. The pressure class (LL, L, or S) is indicated at the end of the series number i.e 5000L, 5002S, 5063LL, etc.
  3. For instances where a DIN x DIN fitting does not have a jump size, only one dash size is displayed.  For example, a 5000L-06 is a light duty L06 x L06 DIN union.
  4. The dash numbers indicate tube size when describing the DIN side of the fitting.  From the last example, a 5000L-06 is an L06 indicating a M12x1.5 thread with 6mm tube receptacle; see the ‘Component Compatibility Chart’ in the How to Assemble 24° DIN Tube Fittings section for details on tube size & thread size relationship.
  5. For non-DIN threads such as NPT, BSPP, etc., the regular dash system is used i.e. -08 indicates 1/2”, -12 is 3/4”, etc. Adaptall usually displays dash sizes with tube or hose side first, then port side.
  6. To order a complete DIN assembly (including fitting, cutting ring, and nut) simply add a “C” to the end of the part number.  For example, a complete L06 male DIN union assembly would be 5000L-06C, etc.  Please note that all LL series (extra light duty) parts come complete.  When a complete assembly is ordered from Adaptall, there is no need to identify components to go along with your assembly.  Adaptall will complete the necessary steps to ensure you are provided with compatible components.

Example:

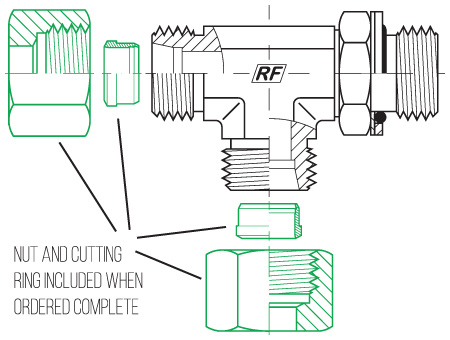

Shown below in black only is 5158L-22-22-12: Male DIN X Male BSPP adjustable Run Tee, size L22 for the DIN threads, and dash size 12 BSPP (3/4”).  When ordered as part number 5158L-22-22-12C it comes as a complete assembly with cutting rings and nuts for the two L22 Male DIN threads (components shown in green).  Looking at the ‘Component Compatibility Chart’ in the How to Assemble 24° DIN Tube Fittings section, one would notice the compatible nuts for this assembly would be 5201L-22 with the compatible cutting rings being 5202-22.
