Image | Product | Description | QTY |
---|---|---|---|
![]() |
9605S-04-L06-12 | LIGHT DUTY |
METRIC
DIN TUBE
9605S SERIES
MALE JIC X MALE METRIC DIN (LIGHT DUTY) COMES W/ WASHER & O-RING
Part # 9605S-04-L06-12
LIGHT DUTY
Shape: Straight
Specifications
Side 1 | ||
---|---|---|
Type | Gender | Size |
JIC | Male | 1/4" |
Thread | Relevant Standard(s) |
---|---|
7/16 - 20 UNF | SAE J514 / ISO 8434-2 |
Side 2 | ||
---|---|---|
Type | Gender | Size |
DIN TUBE | Male | L06 |
Thread | Relevant Standard(s) |
---|---|
M12 X 1.5 | ISO 8434-1 / DIN 2353 |

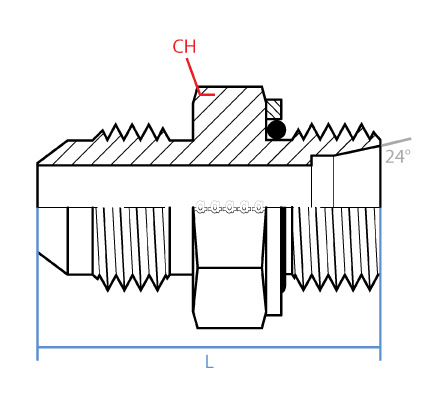

Dimensions
L (Length) |
---|
31.9mm |
CH (Width) |
---|
17mm |
Weight
lbs. |
---|
0.06 |
Dimensions or Material not matching your requirements? Tell us exactly what you need.
Material

Carbon Steel
