METRIC

DIN TUBE

9246 SERIES

MALE JSW TUBE PLUG

Part # 9246-25-34

Shape: Plug

Specifications

Side
Type Gender Size
DIN TUBE Male L25 SPECIAL
Thread Relevant Standard(s)
M34 X 2.0 ISO 8434-1 / DIN 2353

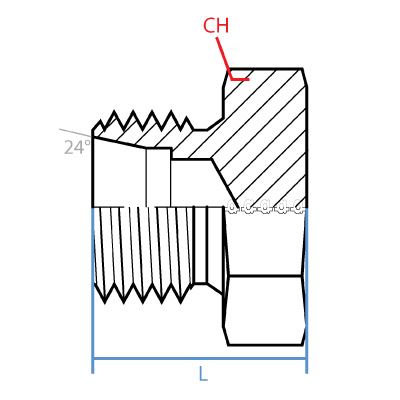

Dimensions

L (Length)
28.7mm
CH (Width)
38mm

Weight

lbs.
0.4

Dimensions shown here are for steel and stainless only.


Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

9246-25-34
