9197-06-L08-14 | MALE JIC X FEMALE METRIC DIN TUBE (SWIVEL) |
METRIC
DIN TUBE
9197 SERIES
MALE JIC X FEMALE METRIC DIN (SWIVEL)
|
|
|
Part # 9197-06-L08-14
Shape: Straight
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 3/8" |
| Thread | Relevant Standard(s) |
|---|---|
| 9/16 - 18 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Female | L08 |
| Thread | Relevant Standard(s) |
|---|---|
| M14 X 1.5 | ISO 8434-1 / DIN 2353 |

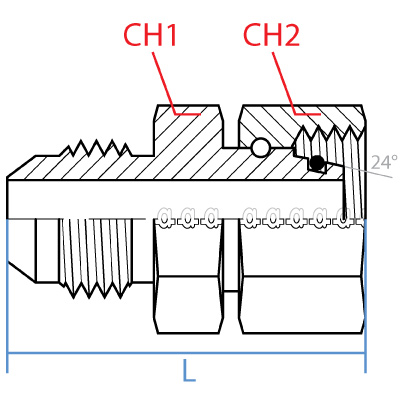

Dimensions
| L (Length) |
|---|
| 40.8mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 17mm | 17mm |
Weight
| lbs. |
|---|
| 0.106 |
Dimensions or Material not matching your requirements? Tell us exactly what you need.
Material
Carbon Steel
