METRIC

DIN TUBE

5068LLT SERIES

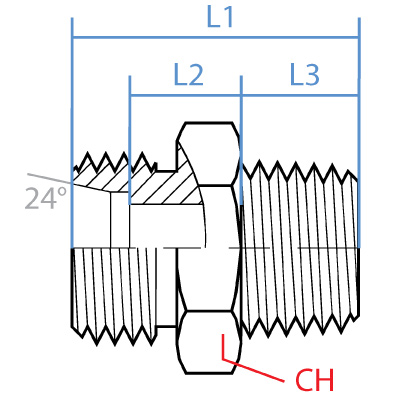

DIN X MALE METRIC TAPER

Part # 5068LLT-04-8X1C

EXTRA LIGHT DUTY

Shape: Straight

Specifications

Side 1
Type Gender Size
DIN TUBE Male LL04
Thread Relevant Standard(s)
M8 X 1.0 ISO 8434-1 / DIN 2353
Side 2
Type Gender Size
METRIC TAPER Male 8mm
Thread Relevant Standard(s)
M8 X 1.0 DIN 158

Weight

lbs.
0.01

Dimensions shown here are for steel and stainless only.


Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

5068LLT-04-8X1C
