Part Number '5009S-08-04 5009S-08-04 HEAVY DUTY
Continue Shopping

METRIC

DIN TUBE

5009 SERIES

DIN X FEMALE BSP SOLID

Part # 5009S-08-04

HEAVY DUTY

Shape: Straight

Specifications

Side 1
Type Gender Size
DIN TUBE Male S08
Thread Relevant Standard(s)
M16 X 1.5 ISO 8434-1 / DIN 2353
Side 2
Type Gender Size
BSPP Female 1/4"
Thread Relevant Standard(s)
G 1/4 - 19 ISO 1179 / ISO 8434-6 / BS 520

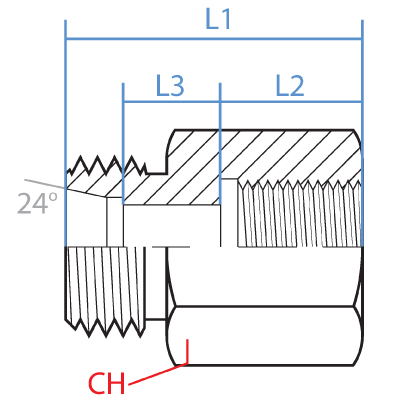

Dimensions

L1 (Length) L2 (Length) L3 (Length)
33mm 17mm 9mm
CH (Width)
19mm

Weight

lbs.
0.1

Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

5009S-08-04
