METRIC

METRIC 60° FLARE

9234 SERIES

MALE METRIC X FEMALE BSPT

Part # 9234-08X1.0-02

Shape: Straight

Specifications

Side 1
Type Gender Size
METRIC Male 8mm
Thread Relevant Standard(s)
M8 X 1.0 ISO 9974 / ISO 6149 / DIN 7631
Side 2
Type Gender Size
BSPT Female 1/8"
Thread Relevant Standard(s)
R 1/8 - 28 ISO 7-1 / DIN EN 10226-1

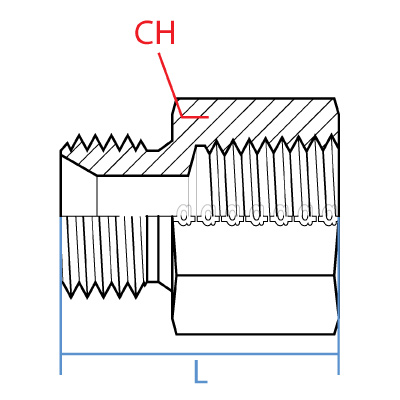

Dimensions

L (Length)
25.7mm
CH (Width)
14mm

Weight

lbs.
0.05

Dimensions shown here are for steel and stainless only.


Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

9234-08X1.0-02
