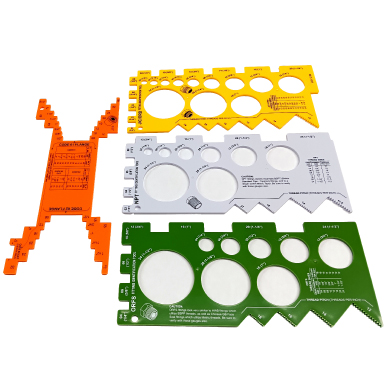

The JIC, NPT, ORB, & ORFS Thread Gauge Kit is a convenient and affordable solution to identifying domestic threaded fittings in the field, shop, or store front.  Featuring 4 tools in a vinyl pouch, this tool allows you to identify internal threads, external threads, thread pitch, as well as chamfer and nose cone angles specific to JIC and NPT.  Custom branding available.

Sizes Covered

JIC & ORB Tool (x1):
02 (1/8") 5/16-24
03 (3/16") 3/8-24
04 (1/4") 7/16-20
05 (5/16") 1/2-20
06 (3/8")  9/16-18
08 (1/2") 3/4-16
10 (5/8") 7/8-14
12 (3/4") 1 1/16-12
14 (7/8") 1 3/16-12
16 (1") 1 5/16-12
20 (1 1/4") 1 5/8-12
24 (1 1/2") 1 7/8-12

NPT Tool (x1):
02 (1/8") 1/8-27
04 (1/4") 1/4-18
06 (3/8")  3/8-18
08 (1/2") 1/2-14
12 (3/4") 3/4-14
16 (1") 1-11.5
20 (1 1/4") 1 1/4-11.5
24 (1 1/2") 1 1/2-11.5

ORFS Tool (x1):
04 (1/4") 9/16-18
06 (3/8")  11/16-16
08 (1/2") 13/16-16
10 (5/8") 1-14
12 (3/4") 1 3/16-12
16 (1") 1 7/16-12
20 (1 1/4") 1 11/16-12
24 (1 1/2") 2-12

CODE 61 & 62 FLANGE (x1)

CODE 61
1/2'' - 08
5/8'' - 10
3/4'' - 12
1'' - 16
1 1/4'' - 20
1 1/2'' - 24
2'' - 32
2 1/2'' - 40
3'' - 48
3 1/2'' - 56
4'' - 64
5'' - 80

CODE 62
1/2'' - 08
3/4'' - 12
1'' - 16
1 1/4'' - 20
1 1/2'' - 24
2'' - 32

CODE 62 CAT
3/4'' - 12
1'' - 16
1 1/4'' - 20
1 1/2'' - 24
2'' - 32
