BRITISH

JIS

9259 SERIES

90° MALE JIS X MALE BSPP ADJ. ELBOW

Part # 9259-08-08

Shape: 90° Elbow

Specifications

Side 1
Type Gender Size
JIS Male 1/2"
Thread Relevant Standard(s)
G 1/2 - 14 JIS B 0202
Side 2
Type Gender Size
BSPP Male 1/2"
Thread Relevant Standard(s)
G 1/2 - 14 ISO 1179 / ISO 8434-6 / BS 520

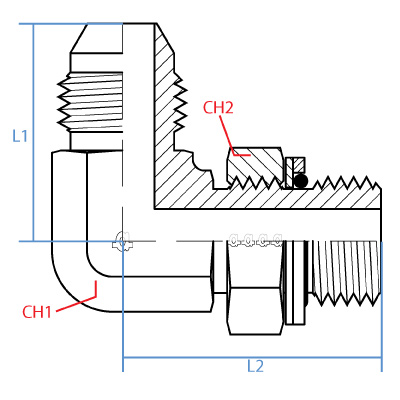

Dimensions

L1 (Length) L2 (Length)
40mm 34mm
CH1 (Width) CH2 (Width)
22mm 27mm

Weight

lbs.
0.35

Dimensions shown here are for steel and stainless only.


Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

9259-08-08
