Part Number '9226-06-06 9226-06-06 FEMALE JIC X FEMALE JIS SWIVEL
Continue Shopping

BRITISH

JIS

9226 SERIES

FEMALE JIC X FEMALE JIS SWIVEL

Part # 9226-06-06

Shape: Straight

Specifications

Side 1
Type Gender Size
JIC Female 3/8"
Thread Relevant Standard(s)
9/16 - 18 UNF SAE J514 / ISO 8434-2
Side 2
Type Gender Size
JIS Female 3/8"
Thread Relevant Standard(s)
G 3/8 - 19 JIS B 0202

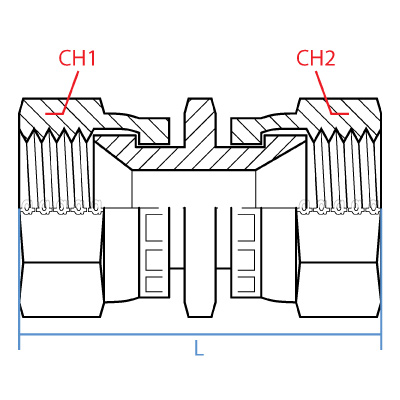

Dimensions

L (Length)
41.1mm
CH1 (Width) CH2 (Width)
22mm 17.5mm

Weight

lbs.
0.119

Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

9226-06-06
