9225-06-06 | 45Degree MALE JIS X MALE BSPT ELBOW |
BRITISH
JIS
9225 SERIES
45° MALE JIS X MALE BSPT ELBOW
|
|
|
Part # 9225-06-06
Shape: 45° Elbow
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIS | Male | 3/8" |
| Thread | Relevant Standard(s) |
|---|---|
| G 3/8 - 19 | JIS B 0202 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| BSPT | Male | 3/8" |
| Thread | Relevant Standard(s) |
|---|---|
| R 3/8 - 19 | ISO 7-1 / DIN EN 10226-1 |

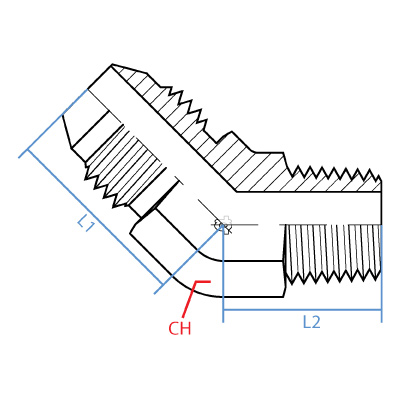

Dimensions
| L1 (Length) | L2 (Length) |
|---|---|
| 22mm | 24mm |
| CH (Width) |
|---|
| 19mm |
Weight
| lbs. |
|---|
| 0.15 |
Dimensions or Material not matching your requirements? Tell us exactly what you need.
Material
Carbon Steel
