9223-04-04 | MALE JIS X MALE BSPT |
BRITISH
JIS
9223 SERIES
MALE JIS X MALE BSPT
|
|
|
Part # 9223-04-04
Shape: Straight
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIS | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| G 1/4 - 19 | JIS B 0202 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| BSPT | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| R 1/4 - 19 | ISO 7-1 / DIN EN 10226-1 |

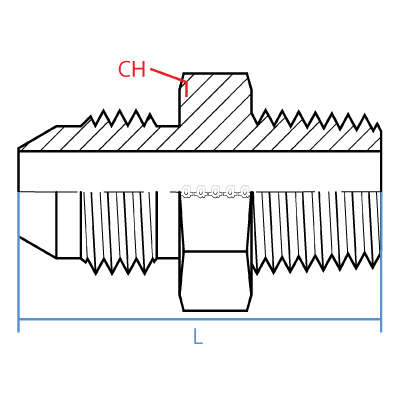

Dimensions
| L (Length) |
|---|
| 42.2mm |
| CH (Width) |
|---|
| 16mm |
Weight
| lbs. |
|---|
| 0.1 |
Dimensions shown here are for steel and stainless only.
Dimensions or Material not matching your requirements? Tell us exactly what you need.
Material
Carbon Steel
