9920-16-16 | MALE BSPP X HOSE HOSE BARB |
BRITISH
BSPP PORT
9920 SERIES
MALE BSPP X HOSE BARB
|
|
|
Part # 9920-16-16
Shape: Straight
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| BSPP | Male | 1" |
| Thread | Relevant Standard(s) |
|---|---|
| G 1 - 11 | ISO 1179 / ISO 8434-6 / BS 520 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| HOSE BARB | - | 1" |
| Thread | Relevant Standard(s) |
|---|---|
| - | ISO 12151 |

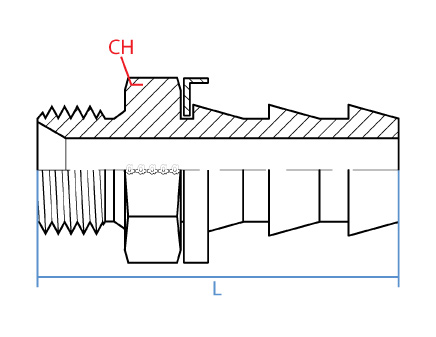

Dimensions
| L (Length) |
|---|
| 79mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 41mm | 25.5mm |
Weight
| lbs. |
|---|
| 0.3 |
Dimensions or Material not matching your requirements? Tell us exactly what you need.
Material
Carbon Steel
