Part Number '9536-02-04 9536-02-04 MALE BSPT X FEMALE SAE ORB
Continue Shopping

AMERICAN

ORB

9536 SERIES

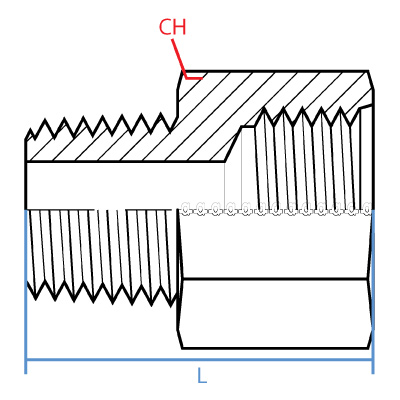

MALE BSPT X FEMALE SAE ORB

Part # 9536-02-04

Shape: Straight

Specifications

Side 1
Type Gender Size
BSPT Male 1/8"
Thread Relevant Standard(s)
R 1/8 - 28 ISO 7-1 / DIN EN 10226-1
Side 2
Type Gender Size
ORB Female 1/4"
Thread Relevant Standard(s)
7/16 - 20 UNF SAE J1926 / ISO 11926

Weight

lbs.
0.05

Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

9536-02-04
