AMERICAN
ORB-SAE
9335 SERIES
MALE METRIC X FEMALE SAE ORB

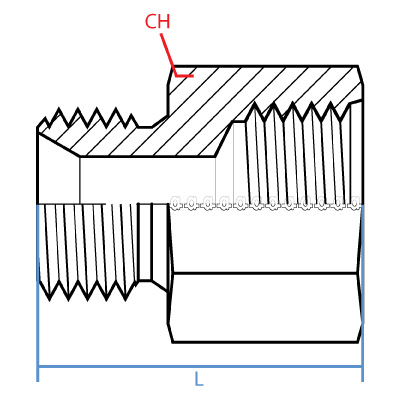

Part # 9335-33-16
Shape: Straight
Specifications
| Side 1 |
| Type |
Gender |
Size |
| METRIC |
Male |
33mm |
| Thread |
Relevant Standard(s) |
| M33 X 2.0 |
ISO 9974 / ISO 6149 / DIN 7631 |
| Side 2 |
| Type |
Gender |
Size |
| ORB-SAE |
Female |
1" |
| Thread |
Relevant Standard(s) |
| 1-5/16 - 12 UN |
SAE J1926 / ISO 11926 |
Dimensions
Weight
Dimensions or Material not matching your requirements? Tell us exactly what you need.
Material
Carbon Steel
