AMERICAN
ORB
9278 SERIES
90° MALE JIS X MALE SAE ORB ELBOW
|
|
|
Part # 9278-04-04
Shape: 90° Elbow
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIS | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| G 1/4 - 19 | JIS B 0202 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| ORB | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| 7/16 - 20 UNF | SAE J1926 / ISO 11926 |

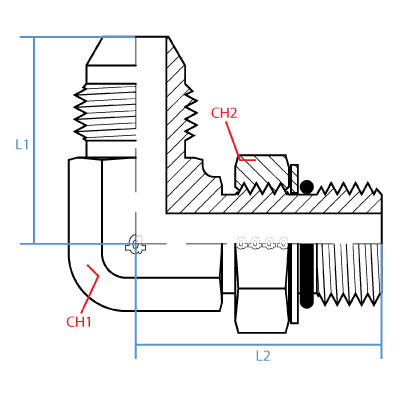

Dimensions
| L1 (Length) | L2 (Length) |
|---|---|
| 28mm | 24mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 14mm | 14mm |
Weight
| lbs. |
|---|
| 0.1 |
Dimensions or Material not matching your requirements? Tell us exactly what you need.
Material
Carbon Steel
