8008-16-16 | BRASS MALE BSPT X MALE NPT |
AMERICAN
NPT
8008 SERIES
BRASS MALE BSPT X MALE NPT
|
|
|
Part # 8008-16-16
Shape: Straight
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| BSPT | Male | 1" |
| Thread | Relevant Standard(s) |
|---|---|
| R 1 - 11 | ISO 7-1 / DIN EN 10226-1 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| NPT | Male | 1" |
| Thread | Relevant Standard(s) |
|---|---|
| 1 - 11.5 NPTF | ANSI B1.20.3 |

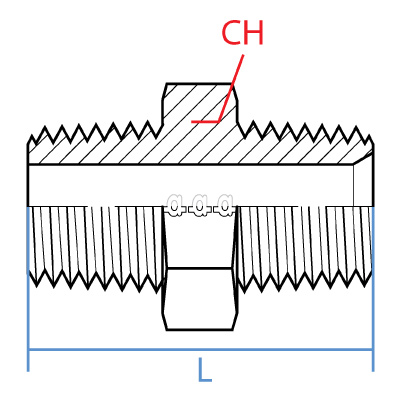

Dimensions
| L (Length) |
|---|
| 62.8 |
| CH (Width) |
|---|
| 35 |
Weight
| lbs. |
|---|
| 0.55 |
Dimensions shown here are for steel and stainless only.
Dimensions or Material not matching your requirements? Tell us exactly what you need.
Material
Brass
