AMERICAN

JIC

9622 SERIES

MALE JIC X FEMALE METRIC FIXED

Part # 9622-04-06X1.0

Shape: Straight

Specifications

Side 1
Type Gender Size
JIC Male 1/4"
Thread Relevant Standard(s)
7/16 - 20 UNF SAE J514 / ISO 8434-2
Side 2
Type Gender Size
METRIC Female 6X1.0
Thread Relevant Standard(s)
M6 X 1.0 ISO 9974 / ISO 6149 / DIN 7631

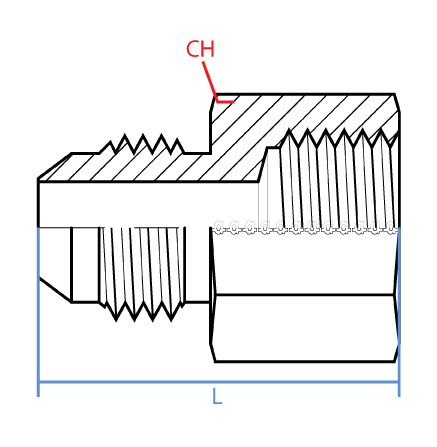

Dimensions

L (Length)
28.1mm
CH (Width)
13mm

Weight

lbs.
0.05

Dimensions shown here are for steel and stainless only.


Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

9622-04-06X1.0
