9240-04-08 | MALE JIC X FEMALE BSPP SWIVEL |
AMERICAN
JIC
9240 SERIES
MALE JIC X FEMALE BSPP SWIVEL
|
|
|
Part # 9240-04-08
Shape: Straight
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| 7/16 - 20 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| BSPP | Female | 1/2" |
| Thread | Relevant Standard(s) |
|---|---|
| G 1/2 - 14 | ISO 1179 / ISO 8434-6 / BS 520 |

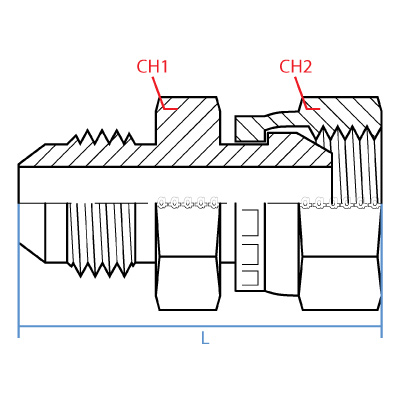

Dimensions
| L (Length) |
|---|
| 45mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 25.5mm | 25.5mm |
Weight
| lbs. |
|---|
| 0.25 |
Dimensions or Material not matching your requirements? Tell us exactly what you need.
Material
Carbon Steel
