AMERICAN

JIC

9229 SERIES

MALE JIC X 50° FEMALE NISSAN (METRIC THREAD)

Part # 9229-06-16

Shape: Straight

Specifications

Side 1
Type Gender Size
JIC Male 3/8"
Thread Relevant Standard(s)
9/16 - 18 UNF SAE J514 / ISO 8434-2
Side 2
Type Gender Size
NISSAN Female 16mm
Thread Relevant Standard(s)
M16 X 1.5 ISO 261

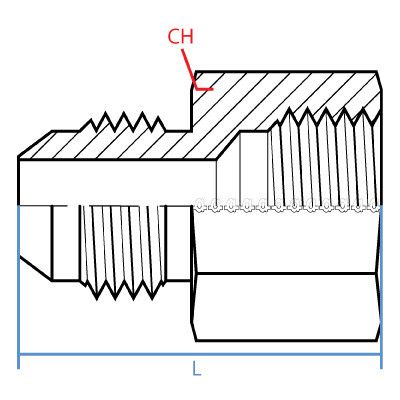

Dimensions

L (Length)
32.9mm
CH (Width)
20.5mm

Weight

lbs.
0.1

Dimensions shown here are for steel and stainless only.


Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

9229-06-16
