AMERICAN

JIC

9226 SERIES

FEMALE JIC X FEMALE JIS SWIVEL

Part # 9226-06-06

Shape: Straight

Specifications

Side 1
Type Gender Size
JIC Female 3/8"
Thread Relevant Standard(s)
9/16 - 18 UNF SAE J514 / ISO 8434-2
Side 2
Type Gender Size
JIS Female 3/8"
Thread Relevant Standard(s)
G 3/8 - 19 JIS B 0202

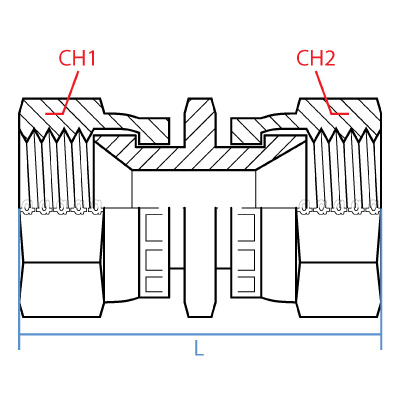

Dimensions

L (Length)
41.1mm
CH1 (Width) CH2 (Width)
22mm 17.5mm

Weight

lbs.
0.119

Dimensions shown here are for steel and stainless only.


Dimensions or Material not matching your requirements?  Tell us exactly what you need.

Material

Carbon Steel

Carbon Steel

9226-06-06
